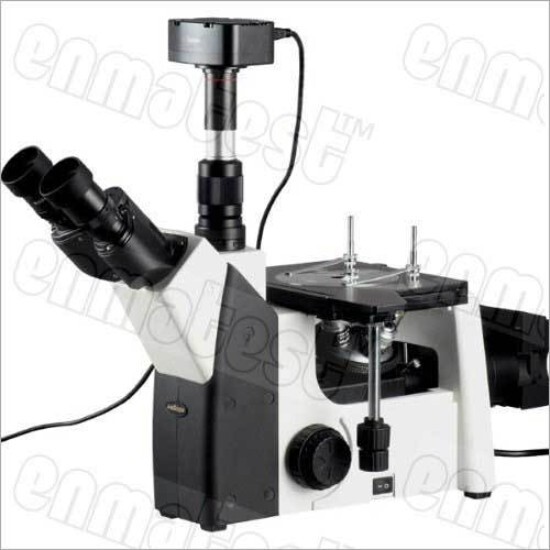

Trinocular Metallurgical Microscope

Product Description

Product Details :

TRINOCULAR OBSERVATION HEAD

• Siedentopf observation head inclined at 45^o.
• Vertical phototube for micro photography light split (80:20).
• Diopter adjustment ring on ocular tube (+5).
• Interpupillary distance from 54mm to 75mm.

EYEPIECE

• Wide field eyepiece 10X (Paired) FOV 18mm

OBJECTIVES (INFINITY CORRECTED)

• M Long Working Distance Plan Achromatic 5X
• M Long Working Distance Plan Achromatic 10X
• M Long Working Distance Plan Achromatic 20X
• M Long Working Distance Plan Achromatic 50X (S L) Dry

MECHANICAL BODY

• Co-axial focusing system with large knobs, PRE-FOCUSING LEVER AND TENSION ADJUSTMENT RING.
• Quadruple nosepiece on ball bearing.
• Mechanical stage is 180mmX155mm. Moving range: 75mmX40mm.
• The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.

ILLUMINATOR

• The Epi illuminator has 5W LED lamp adjustable brightness.

STANDARD ACCESSORIES

• Blue, Green and Yellow filters. Styrofoam molded pack.
